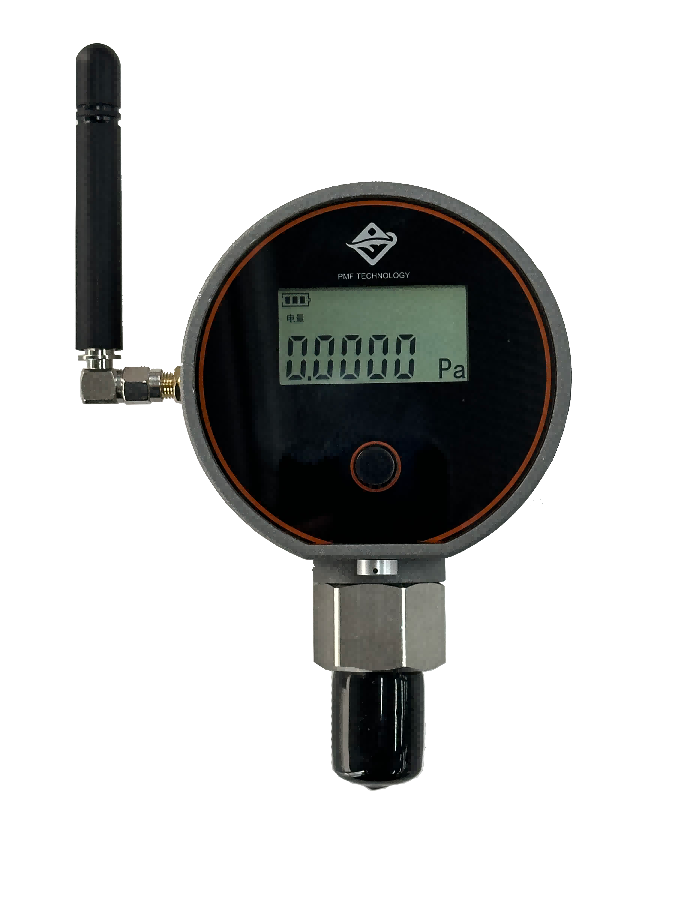

Integrated Pressure Remote Monitoring Instrument
Integrated Pressure Remote Monitoring Instrument
Product Overview
This product is designed for pressure monitoring and health diagnostics of pressure regulating stations. It uses pressure sensors to collect and display real-time pipeline pressure data. Key features include long-term pressure monitoring, leak detection across regional pipelines, and data communication. The product offers high reliability, precision, and low power consumption.
Get Started
Our expert team will provide you with detailed product information and solutions.
Contact a Product ConsultantStandard
- GB3836.1-2021 "Explosive atmospheres — Part 1: General requirements for equipment"
- GB3836.4-2021 "Explosive atmospheres — Part 4: Equipment protected by intrinsic safety 'i'"
- GB/T 4208-2017 "Degrees of protection provided by enclosures (IP Code)"
Key Technical Specifications
| Pressure Range | (0-10) kPa; (0-50) kPa; (0-600) kPa |
| Accuracy Class | 0.5 Level |
| Compatible Media | Air, Natural Gas |
| Detection Principle | MEMS pressure sensing |
| Communication Method | Bluetooth, CAT.1 (subject to product configuration) |
| Thread Specification | M10*1.5, M14*1.5, M20*1.5 |
| Work Environment | Temperature: -15°C to +60°C; Humidity: ≤95% |
| Battery Life | ≥3 years |
| Size | 132mm x 104mm x 58mm |
