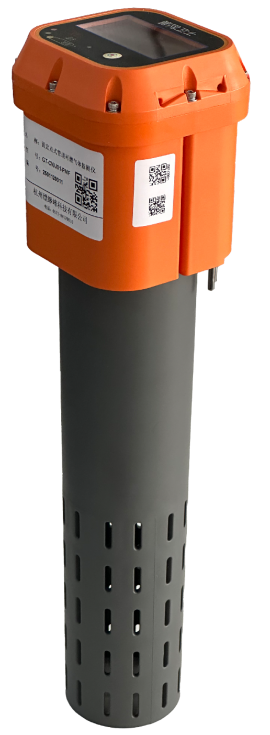

Critical Pipeline Gas Leak Detector
Critical Pipeline Gas Leak Detector
Product Overview
The buried pipeline sentinel consists of an intelligent remote pipeline monitor, a new gas leak detection product developed based on Tunable Diode Laser Absorption Spectroscopy (TDLAS). Designed for areas with unauthorized construction along the pipeline route and regions prone to micro-leaks in the network, it combines Narrowband IoT (NB-IoT/4G) technology with ultra-low-power circuit design. Installed via posts or surface mounting, it continuously monitors methane concentrations along the gas pipeline. Its vibration-based early warning system effectively detects potential pipe damage caused by irregular construction activities and unauthorized earth-moving operations nearby.
Get Started
Our expert team will provide you with detailed product information and solutions.
Contact a Product ConsultantStandard
- GB/T 4208 "Degree of Protection Provided by Enclosures (IP Code)"
- GB/T 3836.1 "Explosive atmospheres - Part 1: General requirements for equipment"
- GB/T 3836.4 "Explosive atmospheres — Part 4: Equipment protected by intrinsic safety 'i'"
Key Technical Specifications
| Communication Method | 4G |
| Card insertion method | Micro SIM Insertion/Ejection |
| Carrier Support | Mobile, Telecom, Unicom |
| Data Collection and Upload Cycle | 30Mins (5 mins to 2, 4 hours max) |
| Monitoring Metrics | Methane concentration, temperature, humidity, vibration |
| Methane Sensor Types | TDLAS (Laser-based) |
| Methane concentration measurement range | 0%-20%Vol |
| Methane concentration resolution | 0.01%Vol |
| Vibration Monitoring Radius | 0-25m |
| Power Supply | Lithium battery, up to 3 years of service life under standard conditions |
| Protection Rating | IP68 |
| Explosion-proof rating | Ex ia IIC T4 Ga |
